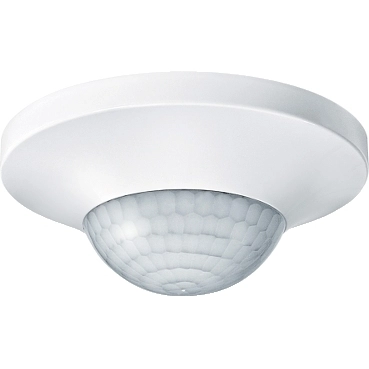

ARGUS DETEKTOR PRISUTNOSTI

Nominal voltage	230
Mounting method	Flush mounted (plaster)
Colour	White
Model	Presence detector
Halogen free	Yes
Surface protection	Untreated
Creep-under protection	Yes
Voltage type	AC
Switching-on delay	0
Switch-off delay	0
Frequency	50 - 60
With remote control	No
Staircase monitoring	Yes
Bridging switch	No
Suitable for wireless transmission	No
Material quality	Thermoplastic
Max. transmission range frontally	7
Max. transmission range sideways	7
Max. switching power	2,200
Temperature	- - -
Max. starting current	14
Material	Plastic
Response value sensitivity adjustable	No
Dim function with dimmer basic element	No
Response value luminosity	10 - 1000
Suitable for C-load	No
Diameter detection range on floor	14
Remote operation	Yes
HVAC-control	No
Constant light control	No
Substation input	No
RAL-number (akin)	9,010
With signal unit	No
Control current	0
Teach-function for response value luminosity	No
Networkable	Yes
Forced switch off	No
Degree of protection (IP)	IP20
Alarm function	No
Transparent	No
Animal zone	No
Type of surface	Brilliant
Detection angle horizontal	0 - 360
Min. switch-on time	10
Max. duty cycle	30
Response value luminosity adjustable	Yes
Optimum mounting height	3
Pivoting range sensor, horizontal	- - -
Pivoting range sensor, vertical	- - -
Number of switching zones	136
With DALI interface	No
Sensor type	Passive infrared
