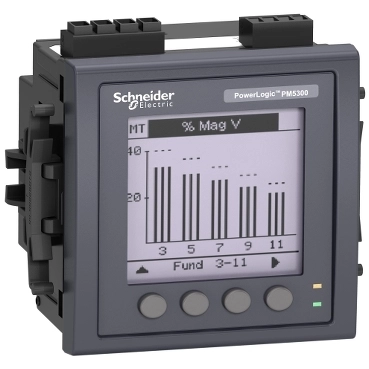

PM5330 mjerač ener. s nač.rad.Modbus, do 31st H, 256K 2DI/2DO 35 alarma, podžbukni

Mounting method	Plug-in technique
Model	Measurement transformer
Suitable for	Purchase
Type of indication	Digital
Frequency	45 - 65
Max. current (Imax)	20
Width in number of modular spacings	6
Number of positions total (counter)	0
Type of meter	Electronic
Degree of protection (IP)	IP52
Type of interface	RS-485
Energy type	Effective power and blind power
Tariff type	Multi-tariff
Tariff control	External
Escapement mechanism	No
Calibrated	Yes
Approval
Pulse output	Electrical
Pulse type	S0
Pulse rate	1 - 9999999
Accuracy class	C
Pole type	Three conductor
Measuring type load profile	Yes
EEC40 signature	No
With lock code	No
Rated voltage (Un) N-L	20 - 400
Rated voltage (Un) L-L	35 - 690
Rated current (In)	9
