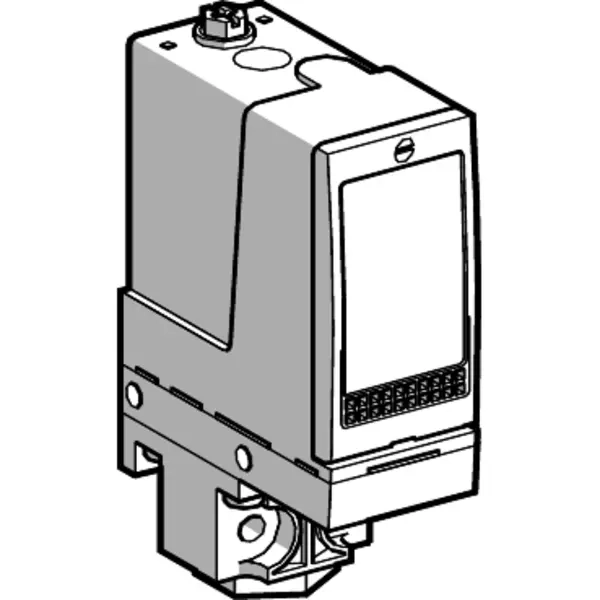

SKLOPKA TLAČNA

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	600 - 10000
End setting	100 - 9500
Max. operation pressure	12,500
Number of auxiliary contacts as change-over contact	1
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP66
Initial value measuring range pressure	0
Switch off pressure	0.1 - 9.5
Rated voltage Ue at AC 50 Hz	120 - 240
Rated voltage Ue at AC 60 Hz	120 - 240
Rated voltage Ue at DC	250 - 250
Bursting pressure	45
Type of pressure connection
Engaging pressure	0.6 - 10
Electronic version	No
End value measuring range pressure	0
Suitable as 2-point controller	No
Suitable as limiter	Yes
Suitable as guard	Yes
Max. test pressure	23
Medium temperature	0 - 70
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	1
