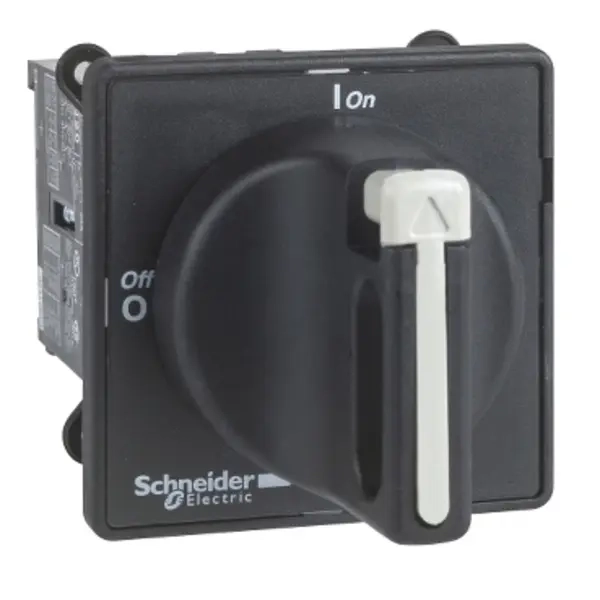

TeSys Mini-Vario, učinski rastavljač, 12 A, na vrata

Additional information

Tip	Rastavna sklopka
In (A)	12

Rated operation power at AC-3, 400 V	3
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	12
Number of poles	3
Rated operating voltage	0 - 690
Conditioned rated short-circuit current Iq	6
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Interlockable	Yes
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Short thumb-grip
Version as main switch	Yes
Version as safety switch	No
Version as maintenance-/service switch	Yes
Rated operation power at AC-23, 400 V	4
Rated short-time withstand current lcw	0
Colour control element	Black
Suitable for ground mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting center	Yes
Suitable for distribution board installation	No
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	690
Motor drive optional	No
Voltage release optional	No
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	12
Switching power at 400 V	0
Version as reversing switch	No
