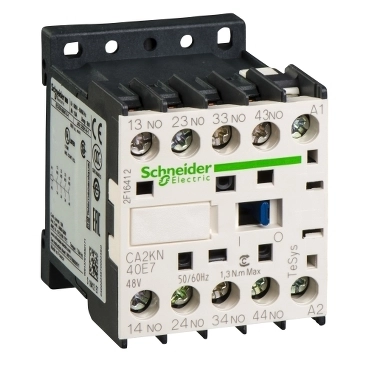

Upravljački relej TeSys K, 4 NO,

Additional information

Kontakti	4NO
Napon svitka (V)	48VAC

Mounting method	DIN-rail/screw
Interface	No
Number of auxiliary contacts as normally open contact	4
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie , 400 V	10
Number of auxiliary contacts as change-over contact	0
Rated control supply voltage Us at AC 50HZ	48 - 48
Rated control supply voltage Us at AC 60HZ	48 - 48
Rated control supply voltage Us at DC	- - -
Manual operation possible	No
With LED indication	No
Connection type auxiliary circuit	Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching	0
Number of auxiliary contacts as normally open contact, leading	0
Voltage type for actuating	AC
