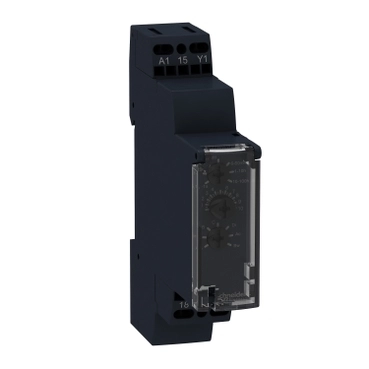

Vremenski relej, 10 funkcija – 1 s…100 sati – 12…240 V AC/DC – 1 OC

Additional information

Tip	Multifunkcijski relej

Width	18
Height	90
Depth	72
With plug-in socket	No
Remote operation possible	No
Suitable only for remote control	No
Function flashing, starting with pause, fixed time	Yes
Function flashing, starting with pulse, fixed time	Yes
Clock function, starting with pause, variable	Yes
Clock function, starting with pulse, variable	Yes
With semiconductor output	No
Function delay-on energization	Yes
Function floating contact on energization	Yes
Function star-delta	Yes
Time range	0.1 - 360000
Function delay on de-energization	Yes
Function floating contact on de-energization	Yes
Function pulse shaping	Yes
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	12 - 240
Rated control supply voltage Us at AC 60HZ	12 - 240
Rated control supply voltage Us at DC	0 - 0
Number of outputs, undelayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, change-over contact	1
Number of outputs, delayed, normally closed contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, delayed, change-over contact	1
Pluggable on auxiliary contact block	No
Outputs, reversible delayed/undelayed	No
Voltage type for actuating	AC
