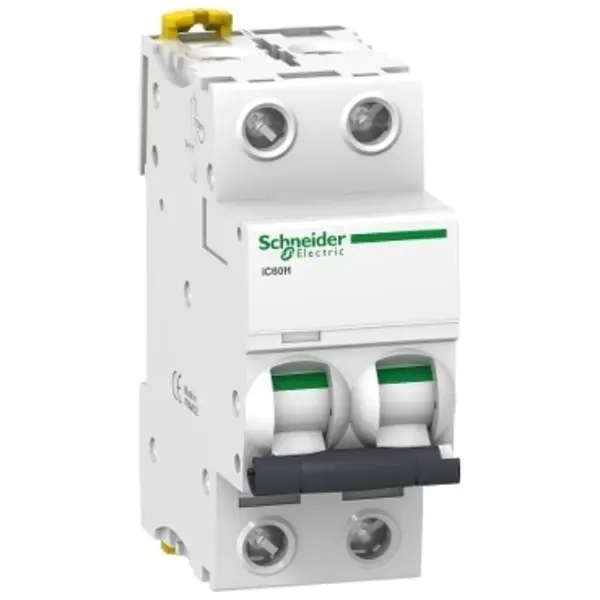

Automatski osigurač iC60H, 15kA, 2P, C, 10A

Additional information

Voltage type	AC/DC
Built-in depth	79
Nominal rated current	10
Nominal rated voltage	400
Frequency	50 - 60
Release characteristic	C
Current limiting class	3
Over voltage category	4
Pollution degree	3
Width in number of modular spacings	2
Degree of protection (IP)	IP20
Number of protected poles	2
Concurrently switching N-neutral	No
Suitable for flush-mounted installation	No
Additional equipment possible	Yes
Number of poles (total)	2
Rated short-circuit breaking capacity Icn EN 60898 at 400 V	10
Rated short-circuit breaking capacity Icn EN 60898 at 230 V	10
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V	30
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V	15
